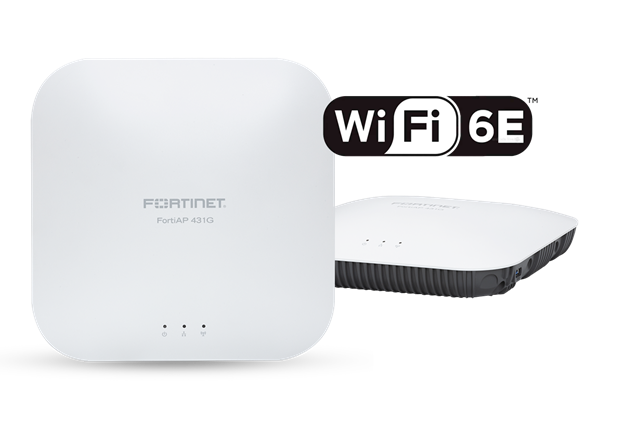

Fortinet FortiAP High Density 431G Access Point
Overview:
Ultra High Density
Fortinet provides the industry’s leading Wi-Fi solutions addressing today’s most pressing ultrahigh density (UHD) challenges, such as high user engagement high network capacity, fast throughput, and low total cost of ownership (TCO). Our solutions leverage the Fortinet Wi-Fi platform, designed and built specifically for UHD venues such as stadiums, arenas, convention centers, shopping malls, transport hubs, auditoriums, campuses, and smart cities.
An Industry Leader
A complementary component of the Fortinet platform is the FortiAP-HD-431G, an indoorrated, medium-capacity access point (AP), primarily employed for enterprise-grade low- to medium-density environments such as small offices, retail outlets, office branches, hospitality, classrooms and non- public service areas.
Concurrent Triple-Radio For Up To 8.4 Gbps
The FortiAP-HD-431G leverages the combined power of three 802.11ax radios operating in 4×4:4 MU-MIMO mode over all available Wi-Fi frequency bands 2.4 GHz, 5 GHz, and 6 GHz. The FortiAP-HD-431G enables concurrent triple-radio operation without impacting the radio performance for an aggregate PHY throughput of 8.407 Gbps.
The FortiAP-HD-431G also provides additional capabilities such as advanced radio resource management, active multi-radio client load balancing, and assisted roaming, which are fully supported and managed by the Fortinet WLAN controller. Through a simple and clear user interface, the FortiAP-HD-431G can be easily and quickly configured, managed, and monitored, through the Fortinet WLAN controller with minimal user interaction, providing operational efficiency and system scalability (up to 1000 APs) without compromise.
Integrated Enterprise Security
The FortiAP-HD-431G features integrated, easy-to-configure security technologies providing secure connectivity for employees and guests. Employing the latest 802.11i advanced security features and encryption, with WPA3 authentication, the FortiAP-HD-431G delivers the level of security required in an enterprise or crowded event environment.
Active Client Roaming And Load Balancing
Our patent-pending load balancing algorithms performs traffic management to optimize client associations, throughput, and roaming. Based on 802.11k and 802.11v protocols, the algorithm dynamically balances users between intra- and inter-AP radios to maximize radio, client, and network performance and capacity.
| HARDWARE OFFERINGS | INDOOR USE | OUTDOOR USE |
|---|---|---|
| Wireless Indoor High Density AP - Three radio 4x4 streams (Wi-Fi 6E IEEE 802.11ax Tri-band 2.4/5/6 GHz) | ✔ | — |
| AP | Radios | Band Support | Software Reconfig | Type | Streams/ Radio | Total Streams |
|---|---|---|---|---|---|---|
| FAP-HD-431G | 3 | 2.4/5/6 GHz | — | Indoor | 4x4 | 12 |
Highlights
- Concurrent tri-radio 802.11ax 4×4 :4 with PHY rate up to 8.407 Gbps
- MIMO and MU-MIMO support
- Up to 200 associated devices per AP
- 5 Gbps backhaul: 2x 10/100/1000/2500/5000 Ethernet ports
- Internal highperformance antennas
- Enhanced multiple security features
- Ceiling and wall mount
Specifications:
| FortiAP-HD-431G | |
|---|---|
| Performance and Capacity | |
| Max. Associated Devices | Up to 200 |
| Active Devices | Up to 99+ with up to 1 Mbps per device |
| Peak PHY Rates |
6 GHz: 4804 Mbps (MCS 11, 160 MHz) 5 GHz: 2402 Mbps (MCS 11, 80 MHz) 2.4 GHz: 1201 Mbps (MCS 11, 40 MHz) Total: 8.407 Gbps Backhaul: 5 Gbps |
| Advanced Radio Technology | |
| Radios Per AP |
Radio 1: 802.11/n/ac/ax 6 GHz Radio 2: 802.11/n/ac/ax 5 GHz Radio 3: 802.11b/g/n/ax 2.4 GHz |
| MIMO Streams (per radio) | MU-MIMO spatial streams allocated simultaneously to multiple clients |
| Max Tx Power |
2.4 GHz: 23 dBm 5 GHz: 23 dBm 6 GHz: 23 dBm |
| Rx Sensitivity |
802.11n (MCS0 HT20): -91 dBm 802.11ac (MCS8 VHT20): -88 dBm 802.11ax (MCS0 HE20): -90 dBm |
| Features |
TPC, DFS, TxBF, SGI MRC, MLD, CDD, STBC, LDPC |
| Antenna Characteristics | |
| Max Physical Antenna Gain |
2.4 GHz: 5 dBi 5 GHz: 6 dBi 6 GHz: 5 dBi |
| Wi-Fi Specifications | |
| Supported Standards | 802.11a/b/g/n/ac/ax |
| Supported Modulation |
802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16/64-QAM 802.11ac: BPSK, QPSK, 16/64/256-QAM 802.11ax: BPSK, QPSK, 16/64/256/1024-QAM |
| Channelization |
20/40/80/160 MHz 2.4 GHz: 2400-2495 MHz 5 GHz: 5150-5250 MHz, 5725-5850 MHz 6 GHz: 5925-6425 MHz, 6425-6525 MHz, 6525-6875 MHz, 6875-7125 MHz |
| Security | WPA, WPA2, WPA3, TLS, IEEE 802.1X |
| Encryption | AES, CBC, CCM, CCMP128,256 |
| Power | |
| Max Input Power | 25 W |
| Max PoE Power Consumption | 23 W |
| DC Power Consumption | 20.4W @ 12V (external power adapter) |
| Input PoE Power Requirement | 42.5-56 Vdc, 600 mA, 25.5 W |
| Max PoE Power Consumption | 25.5 Watts Max (1.45 BTU/Minute) |
| DC Power Requirements | 12 Vdc, 2500 mA, 30 W |
| Max DC Power Consumption | 25.5 Watts Max (2.05 BTU/Minute) |
| Physical Interfaces | |
| Ethernet | 1× 10/100/1000/2500/5000 Mbps GbE |
| Power | PoE 802.3at (Type I), DC Jack (12Vdc) |
| Reset Button | ✔ |
| Diagnostic LEDs | Power, radios, LAN |
| Physical Characteristics | |
| Dimensions | 205 × 205 × 33 mm (8.07 × 8.07 × 1.33 in) |
| Weight | 0.63 kg (1.5 lbs) |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 122°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Operating Humidity | 10% to 95% non-condensing |
| Wireless and Traffic Management | |
|
802.11e QoS, 802.11k RRM 802.11r Fast BSS transition 802.11v Wireless Network Management |
|
| Wireless and Traffic Features | Airtime fairness, client load balancing, dynamic radio management |
| Regulatory and Safety | |
| Radio |
FCC Subpart B, Subpart C Part 15.247, Subpart E 15.407 CE EN300.328, EN301.893, EN50385 |
Note: Frequency selection and transmit power may vary based on regional regulations.
Documentation:
Download the
Fortinet FortiAP High Density Series Datasheet
(PDF).
Pricing Notes:
- FortiCare Premium Support
FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades - FortiCare Elite Support
FortiCare Premium Support with FortiCare Elite Ticket Handling. - Prices are for one year of Premium RMA support. Usual discounts can be applied.
- Annual contracts only. No multi-year SKUs are available for these services.
- Contact Fortinet Renewals team for upgrade quotations for existing FortiCare contracts.
- Pricing and product availability subject to change without notice.
Fortinet Products
FortiAP-HD-431G Base Appliance
FortiAP-HD-431G Wireless Indoor High Density AP - Three radio 4x4 streams (Wi-Fi 6E IEEE 802.11ax Tri-band 2.4/5/6GHz ) [Note: 6GHz band not available in all regulatory domains], internal antennas, 1x 10/100/1000/2500/5000 GbE. 802.3at PoE supported. Use of the 6GHz band subjects to regional regulatory authority approval. Region Code A
#FAP-HD-431G-A
