FortiSwitch ports are managed and secured from FortiGate — extending the same access control and threat protection that guards your network all the way to the wired edge.
Fortinet’s secure, simple, and scalable Ethernet solutions. FortiSwitch delivers high-performance, PoE-ready access through to campus core — managed directly from your FortiGate via FortiLink and fully integrated with the Fortinet Security Fabric. FortiSwitch secure Ethernet switches deliver outstanding security, performance, and manageability for businesses of all sizes. Managed directly from FortiGate through FortiLink, they extend Fortinet Security Fabric protection all the way to the network edge — from desktop access to the campus core. Managed directly from FortiGate — switches, APs, and firewall under one console. Network access security extended to every switch port and connected device. PoE, PoE+, and FPOE models power access points, IP phones, and cameras. From compact desktop units to high-performance MGIG campus cores. The full FortiSwitch lineup, organized by series — from 100 Series access switches through to high-performance 600 Series MGIG platforms, with PoE, PoE+, and FPOE options across the range. All models are available for supply, deployment, and managed support through SYS IT. Access-layer switches with flexible PoE options — 108F, 110G, 124F, and 148F families (standard, POE, and FPOE variants). Mid-range distribution switches — 224D, 224E, 248D, and 248E families with POE and FPOE options. High-density gigabit access — FortiSwitch 348G and 348G-FPOE. More models coming soon. Campus switching platforms with fiber and high-power PoE — 424E, M426E, 448E, and 548D families. High-performance MGIG switches for demanding access and aggregation — 624F and 648F (standard and FPOE). Talk to a SYS IT Fortinet consultant. We’ll help with switch sizing, PoE budgeting, FortiLink design, and stacking — then recommend the FortiSwitch models to match your port count and performance requirements.
Secure Ethernet Switching
Fortinet FortiSwitch Secure Switching Platforms
Series Overview
Secure, Simple, Scalable Ethernet
Get Expert Guidance

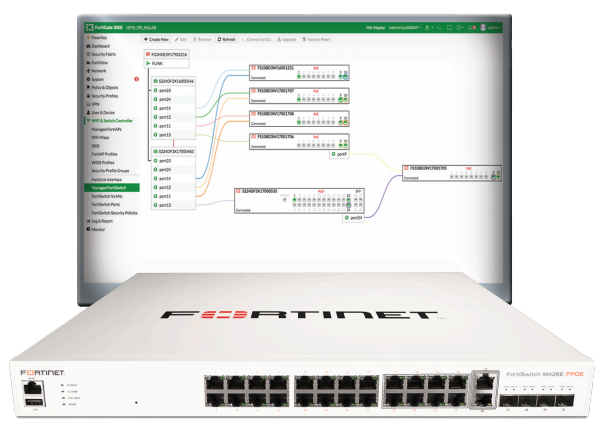

FortiLink management — switches, APs, and firewall under a single console
Tightly integrated with the Fortinet Security Fabric
PoE, PoE+, and FPOE models to power APs, phones, and cameras
Scales from compact desktop units to high-performance MGIG cores
Why FortiSwitch
Switching That’s Part of Your Security Fabric
FortiLink Management
Security Fabric Integration
Power over Ethernet
Scalable Performance
Complete Range
FortiSwitch Switching Platforms
FortiSwitch 100 Series

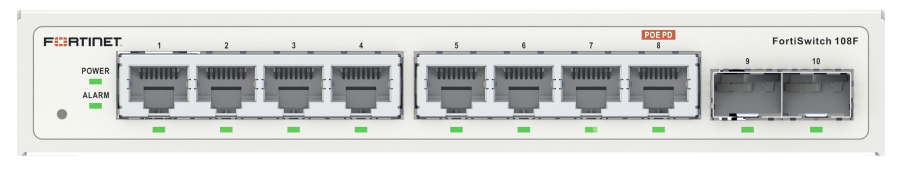

FortiSwitch 108F
Switching Capacity
:
20 Gbps
Forwarding Rate
:
30 Mpps
GE RJ45 Ports
:
8

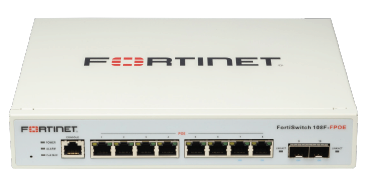

FortiSwitch 108F-FPOE
Primary Port Type
:
1GbE
Number of Ports
:
8
Uplink Capability
:
2x GE SFP
Packets Per Second
:
30 Mpps
Switching Capacity
:
20 Gbps
Link Aggregation Group Size
:
8

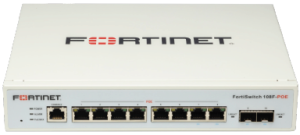

FortiSwitch 108F-POE
Primary Port Type
:
1GbE
Number of Ports
:
8
Uplink Capability
:
2x GE SFP
Packets Per Second
:
30 Mpps
Switching Capacity
:
20 Gbps
Link Aggregation Group Size
:
8

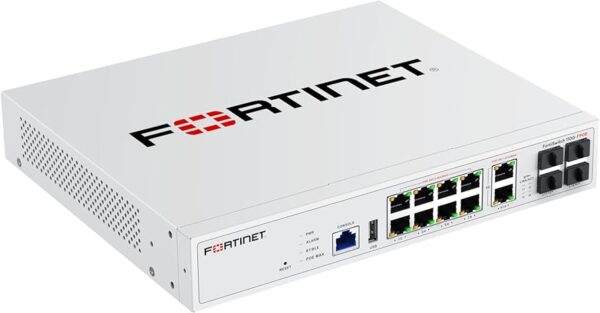

FortiSwitch 110G-FPOE
Primary Port Type
:
2.5GbE / 5GbE Multigig
Number of Ports
:
10
Uplink Capability
:
4x 10GE SFP+
Packets Per Second
:
208 Mpps
Switching Capacity
:
140 Gbps
Link Aggregation Group Size
:
10

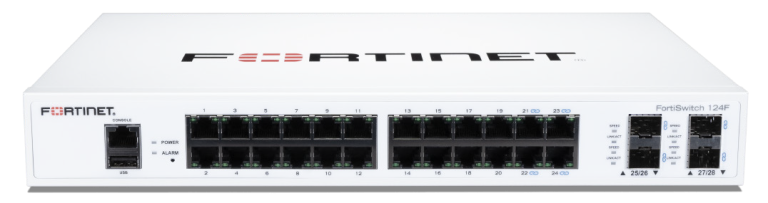

FortiSwitch 124F
Primary Port Type
:
1GbE
Number of Ports
:
24
Uplink Capability:
:
4x 10GE SFP+

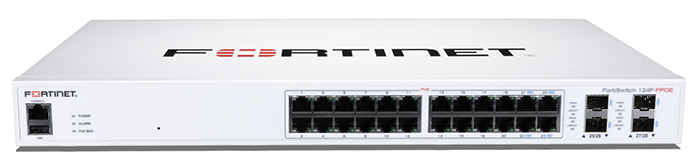

FortiSwitch 124F-FPOE
Primary Port Type
:
1GbE
Number of Ports
:
24
Uplink Capability:
:
4x 10GE SFP+
FortiSwitch 124F-POE
Primary Port Type
:
1GbE
Number of Ports
:
24
Uplink Capability:
:
4x 10GE SFP+

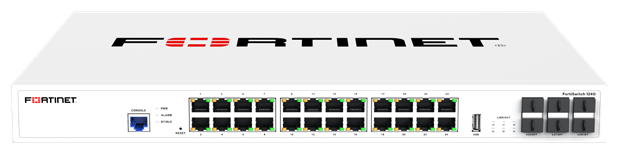

FortiSwitch 124G
Primary Port Type
:
2.5GbE Multigig
Number of Ports
:
24
Uplink Capability
:
6x 10GE SFP+/SFP
Packets Per Second
:
355 Mpps
Switching Capacity
:
240 Gbps
Link Aggregation Group Size
:
8
FortiSwitch 124G-FPOE
Primary Port Type
:
2.5GbE Multigig
Number of Ports
:
24
Uplink Capability
:
6x 10GE SFP+/SFP
Packets Per Second
:
355 Mpps
Switching Capacity
:
240 Gbps
Link Aggregation Group Size
:
8

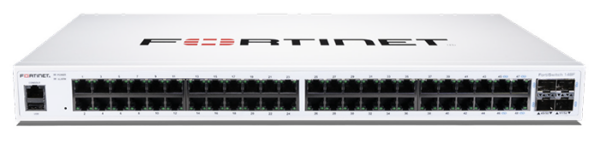

FortiSwitch 148F
Switching Capacity
:
176 Gbps
Forwarding Rate
:
260 Mpps
GE RJ45 Ports
:
48

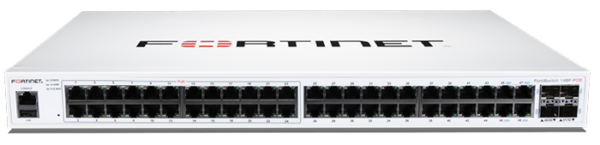

FortiSwitch 148F-FPOE
Primary Port Type
:
1GbE
Number of Ports
:
48
Uplink Capability
:
4x 10GE SFP+
Packets Per Second
:
260 Mpps
Switching Capacity
:
176 Gbps
Link Aggregation Group Size
:
8

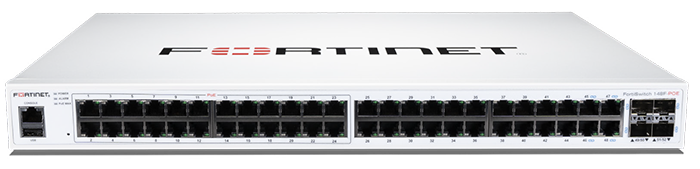

FortiSwitch 148F-POE
Primary Port Type
:
1GbE
Number of Ports
:
48
Uplink Capability
:
4x 10GE SFP+
Packets Per Second
:
260 Mpps
Switching Capacity
:
176 Gbps
Link Aggregation Group Size
:
8
FortiSwitch 200 Series

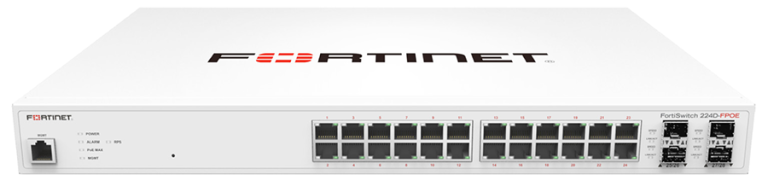

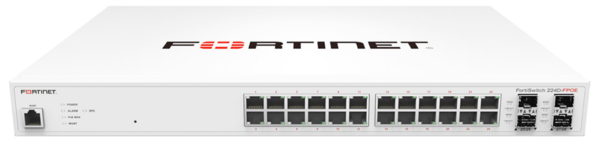

FortiSwitch 224D-FPOE
Primary Port Type
:
1GbE
Number of Ports
:
24
Uplink Capability
:
4x GE SFP
Packets Per Second
:
83 Mpps
Switching Capacity
:
56 Gbps
Link Aggregation Group Size
:
8

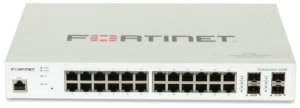

FortiSwitch 224E
Primary Port Type
:
1GbE
Number of Ports
:
24
Uplink Capability
:
4x GE SFP
Packets Per Second
:
83 Mpps
Switching Capacity
:
56 Gbps
Link Aggregation Group Size
:
8

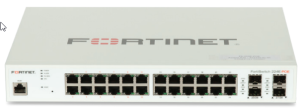

FortiSwitch 224E-POE
Primary Port Type
:
1GbE
Number of Ports
:
24
Uplink Capability
:
4x GE SFP
Packets Per Second
:
83 Mpps
Switching Capacity
:
56 Gbps
Link Aggregation Group Size
:
8

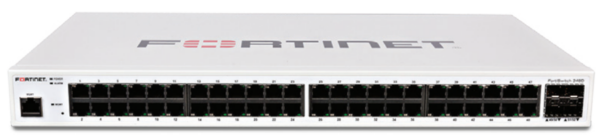

FortiSwitch 248D
Primary Port Type
:
1GbE
Number of Ports
:
48
Uplink Capability
:
4x GE SFP
Packets Per Second
:
155 Mpps
Switching Capacity
:
104 Gbps
Link Aggregation Group Size
:
8

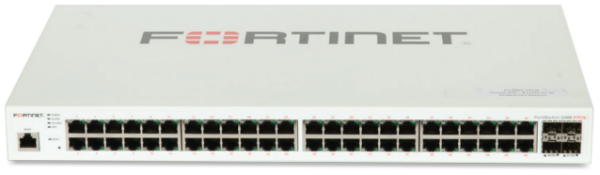

FortiSwitch 248E-FPOE
Primary Port Type
:
1GbE
Number of Ports
:
48
Uplink Capability
:
4x GE SFP
Packets Per Second
:
77.4 Mpps
Switching Capacity
:
104 Gbps
Link Aggregation Group Size
:
8

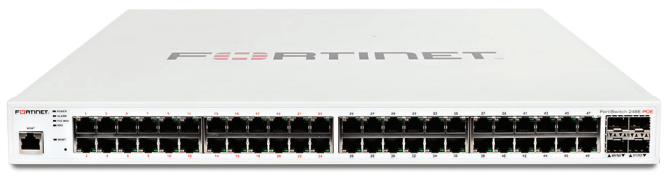

FortiSwitch 248E-POE
Primary Port Type
:
1GbE
Number of Ports
:
48
Uplink Capability
:
4x GE SFP
Packets Per Second
:
77.4 Mpps
Switching Capacity
:
104 Gbps
Link Aggregation Group Size
:
8
FortiSwitch 300 Series

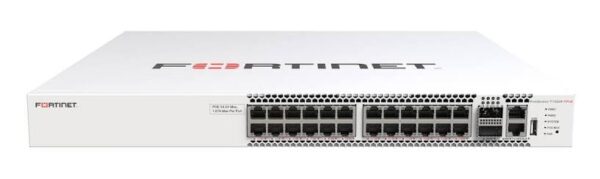

FortiSwitch 348G-FPOE
Primary Port Type
:
2.5GbE Multigig
Number of Ports
:
24
Uplink Capability
:
6x 10GE SFP+/SFP
Packets Per Second
:
355 Mpps
Switching Capacity
:
240 Gbps
Link Aggregation Group Size
:
8
FortiSwitch 348G
Primary Port Type
:
2.5GbE Multigig
Number of Ports
:
24
Uplink Capability
:
6x 10GE SFP+/SFP
Packets Per Second
:
355 Mpps
Switching Capacity
:
240 Gbps
Link Aggregation Group Size
:
8
FortiSwitch 400 & 500 Series

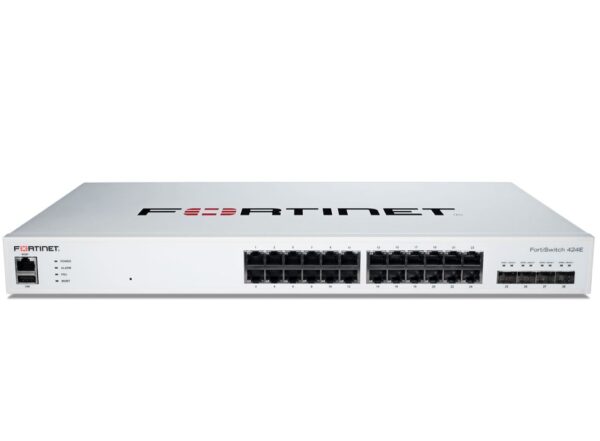

FortiSwitch 424E
Primary Port Type
:
1GbE
Number of Ports
:
24
Uplink Capability
:
4x 10GE SFP+
Packets Per Second
:
204 Mpps
Switching Capacity
:
128 Gbps
Link Aggregation Group Size
:
8

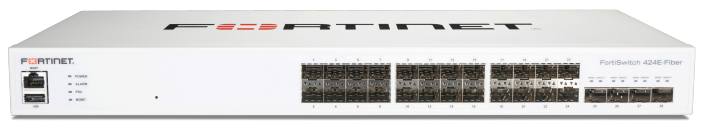

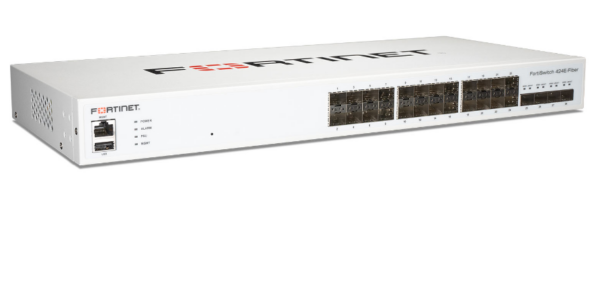

FortiSwitch 424E-FIBER
Primary Port Type
:
1GbE SFP (Fiber)
Number of Ports
:
24
Uplink Capability
:
4x 10GE SFP+
Packets Per Second
:
204 Mpps
Switching Capacity
:
128 Gbps
Link Aggregation Group Size
:
8

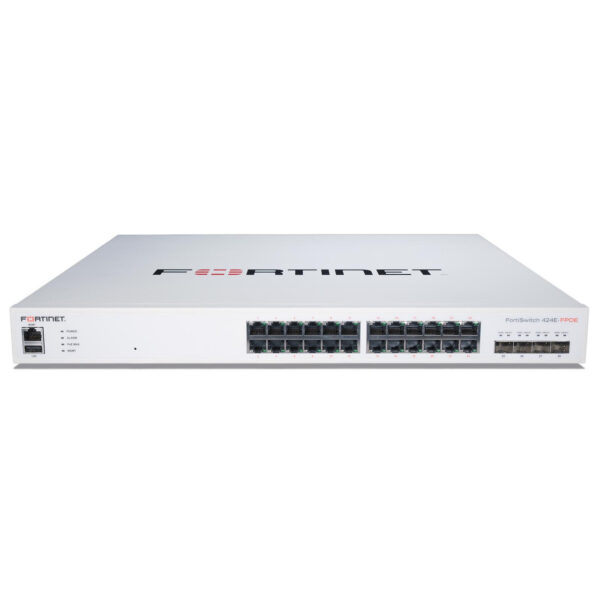

FortiSwitch 424E-FPOE
Primary Port Type
:
1GbE
Number of Ports
:
24
Uplink Capability
:
4x 10GE SFP+
Packets Per Second
:
204 Mpps
Switching Capacity
:
128 Gbps
Link Aggregation Group Size
:
8
FortiSwitch 424E-POE
Primary Port Type
:
1GbE
Number of Ports
:
24
Uplink Capability
:
4x 10GE SFP+
Packets Per Second
:
204 Mpps
Switching Capacity
:
128 Gbps
Link Aggregation Group Size
:
8
FortiSwitch 448E
Primary Port Type
:
1GbE
Number of Ports
:
48
Uplink Capability
:
4x 10GE SFP+
Packets Per Second
:
262 Mpps
Switching Capacity
:
176 Gbps
Link Aggregation Group Size
:
8

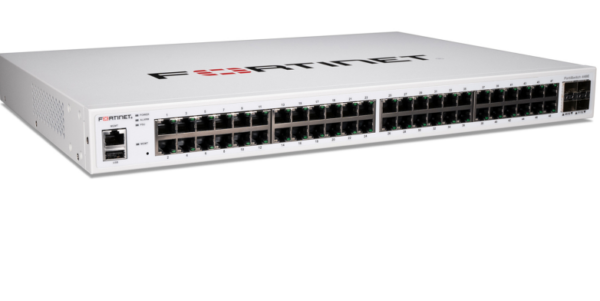

FortiSwitch 448E-FPOE
Primary Port Type
:
1GbE
Number of Ports
:
48
Uplink Capability
:
4x 10GE SFP+
Packets Per Second
:
262 Mpps
Switching Capacity
:
176 Gbps
Link Aggregation Group Size
:
8
FortiSwitch 448E-POE
Primary Port Type
:
1GbE
Number of Ports
:
48
Uplink Capability
:
4x 10GE SFP+
Packets Per Second
:
262 Mpps
Switching Capacity
:
176 Gbps
Link Aggregation Group Size
:
8

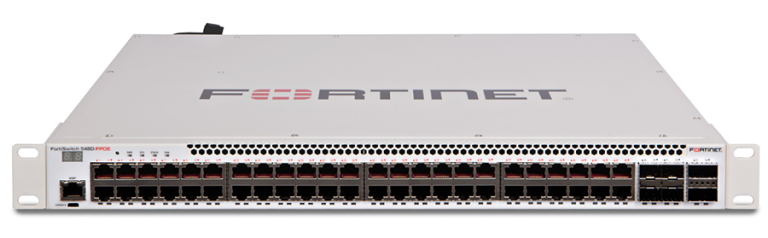

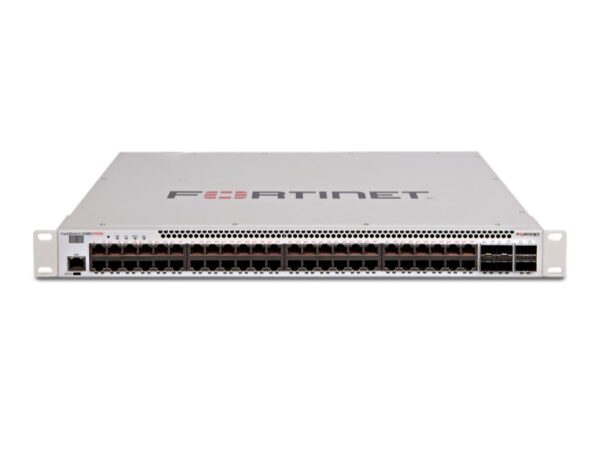

FortiSwitch 548D-FPOE
Primary Port Type
:
1GbE
Number of Ports
:
48
Uplink Capability
:
4x 10GE SFP+ and 2x 40GE QSFP
Packets Per Second
:
512 Mpps
Switching Capacity
:
336 Gbps
Link Aggregation Group Size
:
48
FortiSwitch M426E-FPOE
Primary Port Type
:
5GbE Multigig
Number of Ports
:
26
Uplink Capability
:
4x 10GE SFP+
Packets Per Second
:
255 Mpps
Switching Capacity
:
172 Gbps
Link Aggregation Group Size
:
8
FortiSwitch 600 Series

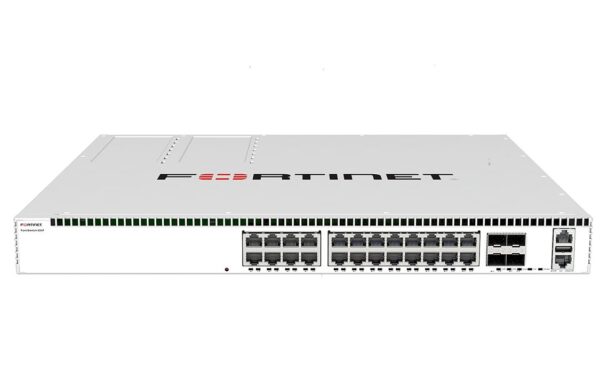

FortiSwitch 624F
Primary Port Type
:
5GbE Multigig
Number of Ports
:
24
Uplink Capability
:
4x 25GE SFP28
Packets Per Second
:
654 Mpps
Switching Capacity
:
440 Gbps
Link Aggregation Group Size
:
28
FortiSwitch 624F-FPOE
Primary Port Type
:
5GbE Multigig
Number of Ports
:
24
Uplink Capability
:
4x 25GE SFP28
Packets Per Second
:
654 Mpps
Switching Capacity
:
440 Gbps
Link Aggregation Group Size
:
28

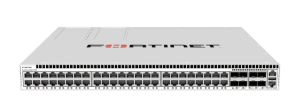

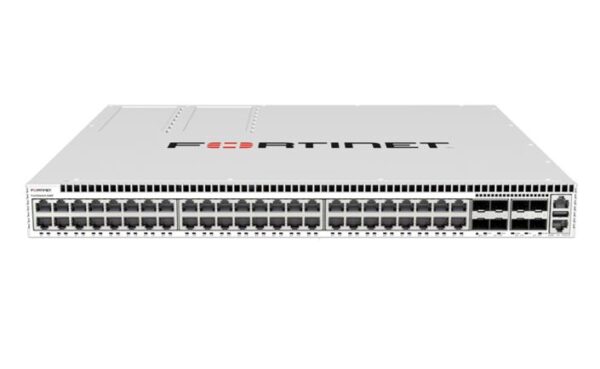

FortiSwitch 648F
Primary Port Type
:
5GbE Multigig
Number of Ports
:
48
Uplink Capability
:
8x 25GE SFP28
Packets Per Second
:
1071 Mpps
Switching Capacity
:
720 Gbps
Link Aggregation Group Size
:
56
FortiSwitch 648F-FPOE
Primary Port Type
:
5GbE Multigig
Number of Ports
:
48
Uplink Capability
:
8x 25GE SFP28
Packets Per Second
:
1071 Mpps
Switching Capacity
:
720 Gbps
Link Aggregation Group Size
:
56
