Description
The FortiGate 70G delivers converged next-generation firewall and SD-WAN with 2.5 Gbps IPS throughput, built on the SD-WAN ASIC SP5 platform, supporting up to 24 FortiSwitches and 96 FortiAPs for comprehensive SD-Branch transformation.
FortiGate 70G Series
Converged Next-Generation Firewall and SD-WAN
Converged Next-Generation Firewall (NGFW) and SD-WAN
The FortiGate 70G integrates firewalling, SD-WAN, and security in one appliance, making it ideal for distributed enterprise branch sites requiring higher throughput and WAN architecture transformation at any scale.
The 70G series runs on FortiOS, the industry’s first converged networking and security operating system. This single OS approach enables businesses to gain operational efficiency and unified protection from the seamless integration of Fortinet Solutions within a Hybrid Mesh Firewall architecture.
As a cornerstone of the Fortinet Security Fabric platform, the FortiGate NGFW works seamlessly with FortiGuard AI-Powered Security Services to deliver coordinated, automated, end-to-end threat protection in real time.
The 70G is built on the patented SD-WAN-based ASIC SP5, which delivers unmatched performance over traditional CPUs with lower cost and reduced power consumption. This application-specific design and embedded multi-core processor accelerate the convergence of networking and security functions to optimise secure connections and deliver a robust user experience at branch locations.
| IPS | NGFW | Threat Protection | Interfaces |
|---|---|---|---|
| 2.5 Gbps | 1.5 Gbps | 1.3 Gbps | 10x GE RJ45 (7 internal, 2 WAN, 1 DMZ) | PoE / WiFi / SSD variants |
Highlights:

FortiGuard AI-Powered Security Services is part of Fortinet’s layered defense and tightly integrated into our FortiGate NGFWs and other products. Infused with the latest threat intelligence from FortiGuard Labs, these services protect organizations against modern attack vectors and threats, including zero-day and sophisticated AI-powered attacks.

FortiOS, Fortinet’s Real-Time Network Security Operating System
FortiOS is the operating system that powers Fortinet Security Fabric platform, enabling enforcement of security policies and holistic visibility across the entire attack surface. FortiOS provides a unified framework for managing and securing networks, cloud-based, hybrid, or a convergence of IT, OT, and IoT. FortiOS enables seamless and efficient interoperation across Fortinet products with consistent and consolidated AI-powered protection across today’s hybrid environments.
Unlike traditional point solutions, Fortinet adopts a holistic approach to cybersecurity, aiming to reduce complexities, eliminate security silos, and improve operational efficiencies. By consolidating security functions into a single platform, FortiOS simplifies management, reduces costs, and enhances overall security posture. Together, FortiGate and FortiOS create intelligent, adaptive protection to help organizations reduce complexity, eliminate security silos, and optimize user experience.
By integrating generative AI (GenAI), FortiOS further enhances the ability to analyze network traffic and threat intelligence, detects deviations or anomalies more effectively, and provides more precise remediation recommendations, ensuring minimum performance impact without compromising security.
Available in:






Intuitive easy to use view into the network and endpoint vulnerabilities

Comprehensive view of network performance, security, and system status

Powered by the only purpose-built SPU
Traditional firewalls cannot protect against today’s content and connection-based threats because they rely on off-the-shelf general-purpose central processing units (CPUs), leaving a dangerous security gap. Fortinet’s custom SPUs deliver the power you need to radically increase speed, scale, and efficiency while greatly improving user experience and reducing footprint and power requirements. Fortinet’s SPUs deliver up to 520 Gbps of protected throughput to detect emerging threats and block malicious content while ensuring your network security solution does not become a performance bottleneck.
Fortinet ASICs are designed to be energy-efficient, leading to lower power consumption and improved TCO. They deliver industry-leading throughput, handle more traffic and perform security inspections faster, reduce latency for quicker packet processing and minimize network delays.
Fortinet SPUs are designed with integrated security functions like zero trust, SSL, IPS, and VXLAN to name but a few, dramatically improving the performance of these functions that competitors traditionally implement in software.
Secure SD-WAN ASIC SP5

Whether you are a small business or a large enterprise, Fortinet provides centralized control, visibility, and automation for your security infrastructure.
FortiManager: Centralized management at scale for distributed enterprises
FortiManager, powered by FortiAI, is a centralized management solution for the Fortinet Security Fabric. It streamlines mass provisioning and policy management for FortiGate, FortiGate VM, cloud security, SD-WAN, SD-Branch, FortiSASE, and ZTNA in hybrid environments. Additionally, FortiManager provides real-time monitoring of the entire managed infrastructure and automates network operation workflows. Leveraging GenAI in FortiAI, it further enhances Day 0–1 configurations and provisioning, and Day N troubleshooting and maintenance, unlocking the full potential of the Fortinet Security Fabric and significantly boosting operational efficiency.
FortiGate Cloud: Simplified management for small and mid-size businesses
FortiGate Cloud is a SaaS service offering simplified management, security analytics, and reporting for Fortinet FortiGate NGFWs to help you more efficiently manage your devices and reduce cyber risk. It simplifies the initial deployment, setup, and ongoing management of FortiGates and downstream connected devices such as FortiAP, FortiSwitch, and FortiExtender, with zero-touch provisioning. It provides real-time and historical visibility into traffic analytics and security threats to reduce risks and improve security posture. View various threats, web traffic, and system events stored in the cloud for up to a year, with predefined reports to meet compliance and deliver actionable insights.

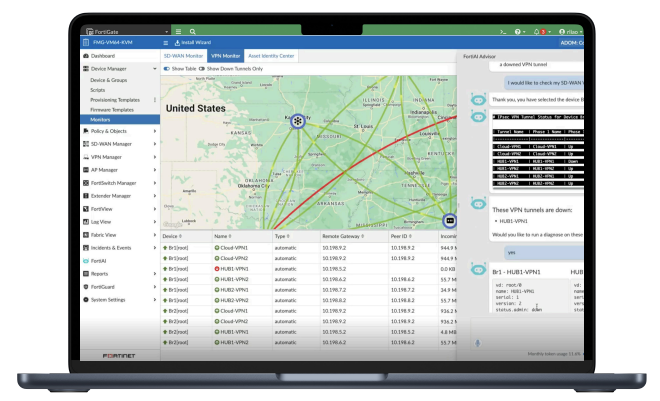

GenAI in FortiManager helps manage networks effortlessly—generates configuration and policy scripts, troubleshoots issues, and executes recommended actions

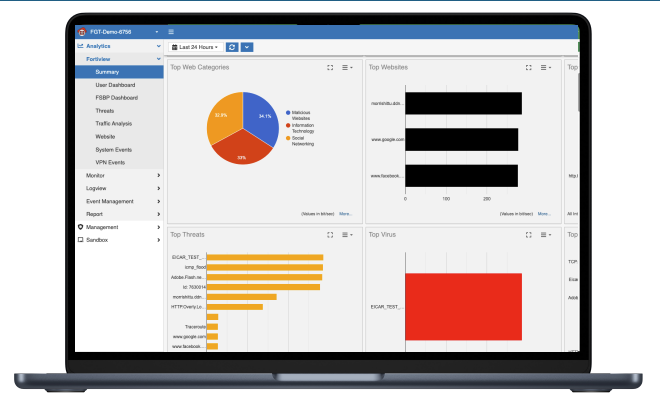

FortiGate Cloud provides intuitive management and analytics solution with end-to-end visibility, logging and reporting for SMB.

Migration to FortiGate NGFW made easy
The FortiConverter Service provides hassle-free migration to help organizations transition quickly and easily from a wide range of legacy firewalls to FortiGate NGFWs. The service eliminates errors and redundancy by employing best practices with advanced methodologies and automated processes. Organizations can accelerate their network protection with the latest FortiOS technology.




Control access to applications no matter where the user is and no matter where the application is hosted for universal application of access policies

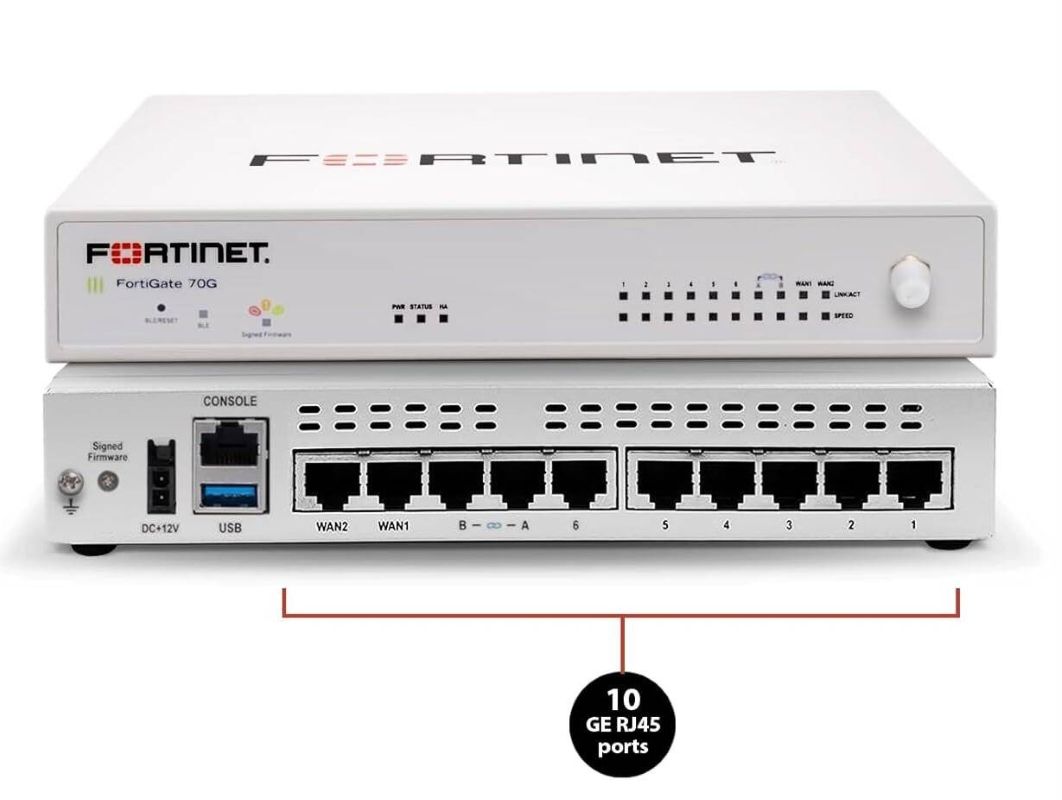

FortiGate 70G/71G

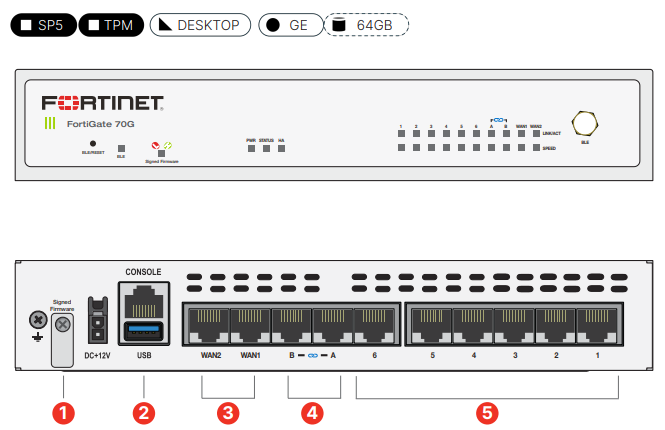

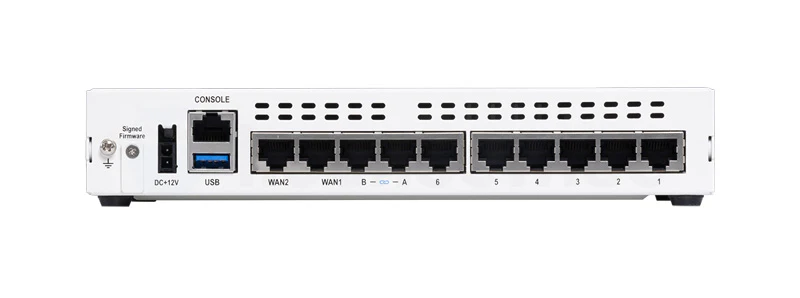

Interfaces
Specifications
| FG-70G | FG-71G | FG-70G-POE | FG-71G-POE | |
|---|---|---|---|---|
| Hardware Accelerated GE WAN Port | 2 | 2 | 2 | 2 |
| Hardware Accelerated GE RJ45 Ports | 6 | 6 | 2 | 2 |
| Hardware Accelerated GE RJ45 FortiLink Port (Default) | 2 | 2 | 2 | 2 |
| Hardware Accelerated GE RJ45 POE/+Ports | u2014 | u2014 | 4 | 4 |
| USB Ports | 1 | 1 | 1 | 1 |
| Console Port (RJ45) | 1 | 1 | 1 | 1 |
| Internal Storage | u2014 | 64GB SSD | u2014 | 64GB SSD |
| Trusted Platform Module (TPM) | u2713 | u2713 | u2713 | u2713 |
| Bluetooth Low Energy (BLE) | u2713 | u2713 | u2713 | u2713 |
| Signed Firmware Hardware Switch | u2713 | u2713 | u2713 | u2713 |
| FG-70G | FG-71G | FG-70G-POE | FG-71G-POE | |
|---|---|---|---|---|
| IPS Throughput | 2.5 Gbps | |||
| NGFW Throughput | 1.5 Gbps | |||
| Threat Protection Throughput | 1.3 Gbps | |||
| FG-70G | FG-71G | FG-70G-POE | FG-71G-POE | |
|---|---|---|---|---|
| Firewall Throughput (1518/512/64 byte UDP packets) | 10 / 10 / 10 Gbps | |||
| Firewall Latency (64 byte UDP packets) | 2.46 u03bcs | |||
| Firewall Throughput (Packets Per Second) | 15 Mpps | |||
| Concurrent Sessions (TCP) | 1.4M | |||
| New Sessions/Second (TCP) | 100,000 | |||
| Firewall Policies | 5000 | |||
| IPsec VPN Throughput (512 byte) | 7.1 Gbps | |||
| Gateway-to-Gateway IPsec VPN Tunnels | 200 | |||
| Client-to-Gateway IPsec VPN Tunnels | 500 | |||
| SSL-VPN Throughput | N/A | |||
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | N/A | |||
| SSL Inspection Throughput (IPS, avg. HTTPS) | 1.4 Gbps | |||
| SSL Inspection CPS (IPS, avg. HTTPS) | 715 | |||
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 140,000 | |||
| Application Control Throughput (HTTP 64K) | 3.6 Gbps | |||
| CAPWAP Throughput (HTTP 64K) | 6.8 Gbps | |||
| Virtual Domains (Default / Maximum) | 10/10 | |||
| Maximum Number of FortiSwitches Supported | 24 | |||
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 96 / 48 | |||
| Maximum Number of FortiTokens | 500 | |||
| High Availability Configurations | Active-Active, Active-Passive, Clustering | |||
| FG-70G | FG-71G | FG-70G-POE | FG-71G-POE | |
|---|---|---|---|---|
| Height x Width x Length (inches) | 1.6 x 8.5 x 6.3 | |||
| Height x Width x Length (mm) | 40.5 x 216 x 160 | |||
| Weight | 2.01 lbs (0.91 kg) | 2.05 lbs (0.93 kg) | 2.145 lbs (0.973 kg) | 2.19 lbs (0.993 kg) |
| Form Factor (supports EIA/non-EIA standards) | Desktop | |||
| FG-70G | FG-71G | FG-70G-POE | FG-71G-POE | |
|---|---|---|---|---|
| Input Rating | 12VDC, 3A | |||
| Power Supply Efficiency Rating | 80Plus Compliant | |||
| Maximum Current | 100V/0.4A ,240V/0.2A | |||
| Total Available PoE Power Budget* | u2014 | u2014 | 60 W | 60 W |
| Power Required | Powered by External DC Power Adapter, 100u2013240V AC, 50/60 Hz | |||
| Power Consumption (Average / Maximum) | 12.3 W / 12.8 W | 13.4 W / 14.1 W | 70.3 W / 72.5 W | 76 W / 79 W |
| Heat Dissipation | 43.65 BTU/hr | 48.08 BTU/hr | 247.23 BTU/hr | 269.39 BTU/hr |
| Operating Temperature | 32u00b0F to 104u00b0F (0u00b0C to 40u00b0C) | |||
| Storage Temperature | -31u00b0F to 158u00b0F (-35u00b0C to 70u00b0C) | |||
| Humidity | 10% to 90% non-condensing | |||
| Noise Level | Fanless | |||
| Operating Altitude | Up to 10,000 ft (3048 m) | |||
| Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB | |||
| Certifications | USGv6/IPv6 | |||
Products
| FortiGate 70G Base Appliance | ||
| FortiGate-70G 10 x GE RJ45 ports (7 x Internal, 2 x WAN, 1 x DMZ) | #FG-70G | |
| FortiGate-70G Hardware plus FortiCare Premium and FortiGuard Enterprise Protection | ||
| Includes: Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Enterprise Services Bundle plus term of contract | ||
| FortiGate-70G Hardware plus 1 Year FortiCare Premium and FortiGuard Enterprise Protection | #FG-70G-BDL-809-12 | |
| FortiGate-70G Hardware plus 3 Year FortiCare Premium and FortiGuard Enterprise Protection | #FG-70G-BDL-809-36 | |
| FortiGate-70G Hardware plus 5 Year FortiCare Premium and FortiGuard Enterprise Protection | #FG-70G-BDL-809-60 | |
| FortiGate-70G Hardware plus FortiCare Premium and FortiGuard Unified Threat Protection (UTP) | ||
| Includes: Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle plus term of contract | ||
| FortiGate-70G Hardware plus 1 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) | #FG-70G-BDL-950-12 | |
| FortiGate-70G Hardware plus 3 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) | #FG-70G-BDL-950-36 | |
| FortiGate-70G Hardware plus 5 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) | #FG-70G-BDL-950-60 | |
| FortiGate-70G Advanced Threat Protection (IPS, Advanced Malware Protection Service, Application Control, and FortiCare Premium) | ||
| FortiGate-70G 1 Year Advanced Threat Protection (IPS, Advanced Malware Protection Service, Application Control, and FortiCare Premium) | #FC-10-GT70G-928-02-12 | |
| FortiGate-70G 3 Year Advanced Threat Protection (IPS, Advanced Malware Protection Service, Application Control, and FortiCare Premium) | #FC-10-GT70G-928-02-36 | |
| FortiGate-70G 5 Year Advanced Threat Protection (IPS, Advanced Malware Protection Service, Application Control, and FortiCare Premium) | #FC-10-GT70G-928-02-60 | |
| FortiGate-70G Unified Threat Protection (UTP) | ||
| Includes: FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle | ||
| FortiGate-70G 1 Year Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, URL, DNS & Video Filtering, Antispam Service, and FortiCare Premium) | #FC-10-GT70G-950-02-12 | |
| FortiGate-70G 3 Year Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, URL, DNS & Video Filtering, Antispam Service, and FortiCare Premium) | #FC-10-GT70G-950-02-36 | |
| FortiGate-70G 5 Year Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, URL, DNS & Video Filtering, Antispam Service, and FortiCare Premium) | #FC-10-GT70G-950-02-60 | |
Pricing Notes:
Resources
The FortiGate 70G is the next-generation successor to the 70F, built on the newer SD-WAN ASIC SP5 platform. It delivers significantly higher IPS throughput (2.5 Gbps vs 1.4 Gbps), more concurrent sessions (1.4M vs 700K), and includes TPM, BLE, and Signed Firmware Hardware Switch as standard features.
The base FortiGate 70G does not include PoE. A dedicated FG-70G-POE variant is available with 4 PoE/+ ports and a 60W PoE budget for powering IP phones, access points, and cameras directly from the firewall.
The FortiGate 70G supports up to 96 FortiAPs in total (48 in tunnel mode), making it suitable for medium-sized branch offices with extensive wireless deployments.
For most enterprise branch deployments, the Enterprise Protection bundle is recommended u00e2u20acu201d it includes IPS, AI-based malware prevention, DLP, CASB, application control, URL/DNS/video filtering, antispam, attack surface security, and FortiCare Premium support.
The FortiGate 70G delivers converged next-generation firewall and SD-WAN with 2.5 Gbps IPS throughput, built on the SD-WAN ASIC SP5 platform, supporting up to 24 FortiSwitches and 96 FortiAPs for comprehensive SD-Branch transformation.
